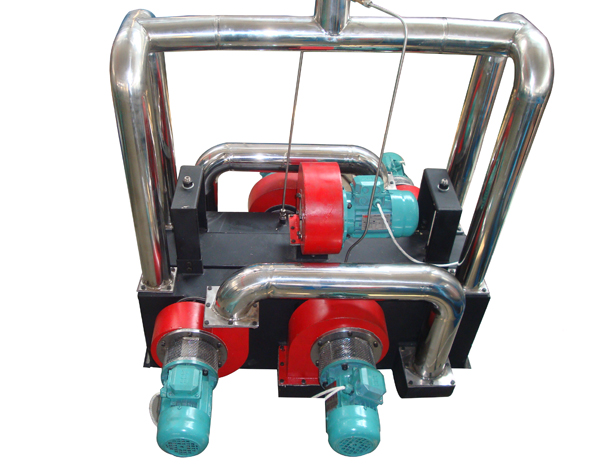

The hot end steam coating machine :
Device uses :
This product can provide a uniform coating of glass products, including a full bottle protection to the surface microcrack repair products, enhanced compressive strength and impact abrasion resistance, bright and beautiful products.
Structural features :
Compact body, easy maintenance, uniform spray.
Main body are made of stainless steel, wear-resistant high.
3. supply paint system using advanced diaphragm pumps, feeding frequency control, uniformity and stability.
4 with the exhaust guide tube, the effective protection of the live environment and personal health.
Specifications :
Power: 380V/50HZ
Power: 0.9KW
Within the circulating speed: 8 to 14m / s
The outer circulating speed: 2.5 to 6m / s
The circulation air temperature: 160 to 19 0 ° C
Paint flow: 0 to 4.3mL/min
Products by height: 50 to 300mm
Spraying Stroke: 940mm/1240mm
